Product Description

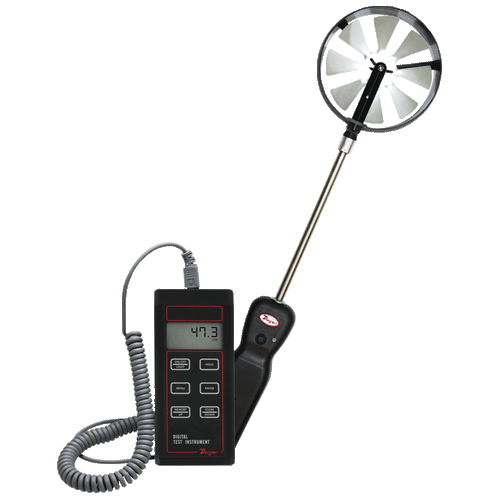

Model 473B 100 mm Vane Thermo-Anemometer Test Instrument (Model # 473B-1)
Includes: Digital Thermo-Anemometer, 9V Battery, Sensing Probe, Wrist Strap, Soft Carrying Case & Instructions
*Measures Air Velocity or Air Volume, Temperature, and Humidity Simultaneously
The MODEL 473B 100 mm Vane Thermo-Anemometer Test Instrument is a versatile unit that quickly and easily measures air velocity or volumetric air flow, as well as air temperature and humidity in imperial or metric units. A stainless steel 100 mm vane probe is included, which has a comfortable hand grip. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.
Product Applications:
- Residential balancing
- HVAC inspections
Specifications:
- Service: Dry, clean air.
- Range: Air Velocity; 40 to 5000 fpm (0.2 to 25 m/s); Volumetric Air Flow: 19,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100° C); Relative Humidity: 0 to 100% RH.
- Temperature Limits: Process: -20 to 212° F (-29 to 100° C): Ambient: 5 to 125° F (-15 to 51° C).
- Display:4.5 digit backlit display.
- Accuracy:Air Velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]; ±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]; Temperature: ±0.54°F @ 77°F (±0.3° C @ 25°C); Relative Humidity: ±2% @ 77°F (25° C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH].
- Response Time: Air Velocity; 1 s; Volumetric Air Flow: 1 s; Temperature: 1.5 s; Relative Humidity:1.5 s.
- Probe Length: 8" (203 mm) insertion.
- Cable Length: 28" (71 cm) retracted; 6' (183 cm) extended.
- Vane Material:Anodized aluminum.
- Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable.
- Weight: 18.4 oz (521 g).
- Agency Approvals: CE.
Features:
- Compatible with Dwyer AP1 thermo-anemometer and RP1 thermo-hygrometer wired probes (sold separately).
- Included 100 mm vane probe is able to measure air velocity, volumetric air flow, temperature, and humidity.
- High contrast and backlit LCD for visibility in any condition.
- Able to store up to 99 readings for later evaluation.
