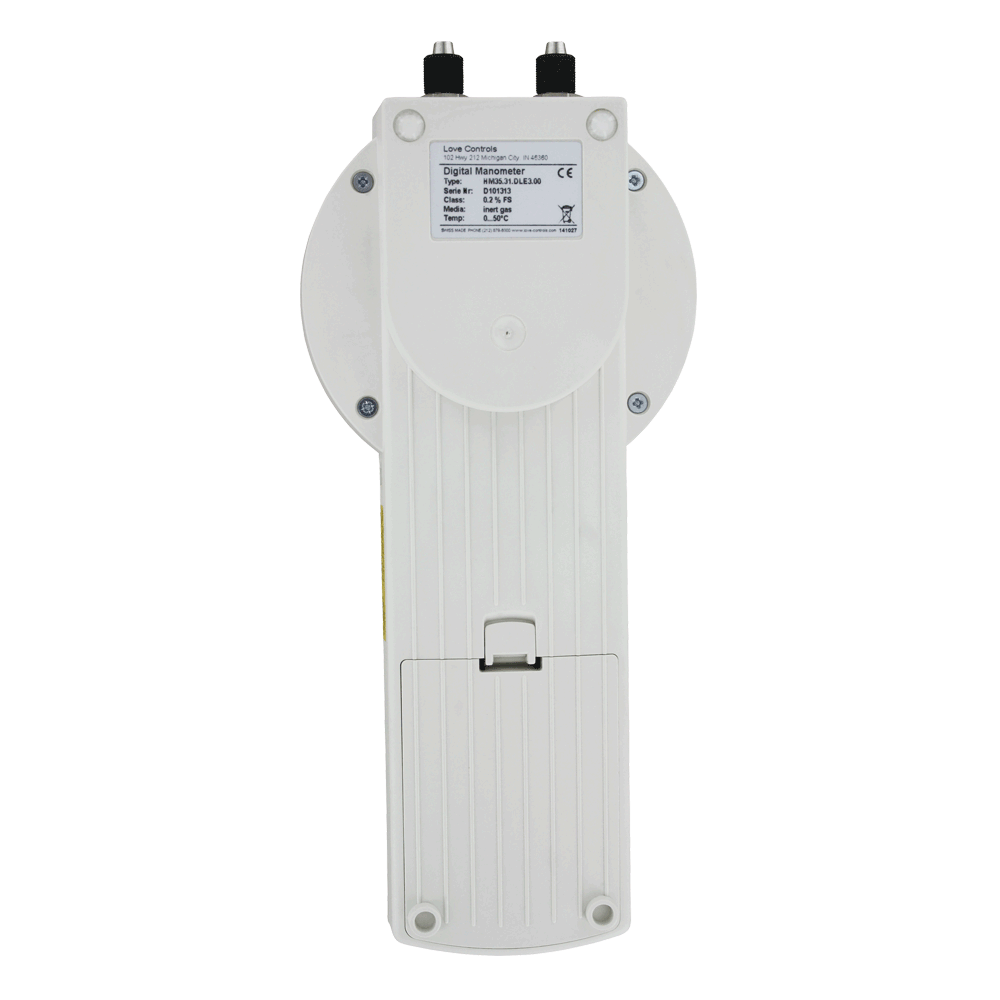

  • Series HM35, back view.
  • Series HM35, dimensions.
  • Series HM35, left view.
  • Series HM35, right view.
  • Series HM35, model chart.

    • Series HM35 Precision Digital Gage Pressure Manometer – 0–14.5 PSI, 0.20% Accuracy – Model HM3531GMH310

    Dwyer

    $3,934.80
    (No reviews yet) Write a Review
    SKU:
    M3531GMH310
    Availability:
    Consult Factory
    Weight:
    10.50 Ounces
    Width:
    6.90 (in)
    Height:
    5.40 (in)
    Depth:
    3.90 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

    Precision Digital Gage Pressure Manometer – HM3531GMH310

    The Series HM35 Precision Digital Gage Pressure Manometer is engineered for ultra-low-pressure measurement and calibration where extreme sensitivity, repeatability, and documentation are required.

    This configuration delivers a 0–14.5 PSI range with 0.20% full-scale accuracy, built-in data logging, graphical trend visualization, and a factory calibration certificate — making it ideal for laboratory use, industrial hygiene programs, and gas system verification.

    Designed for air and compatible gases, the HM3531GMH310 supports regulator validation, leak detection, micro-pressure measurement, and QA traceability workflows.

    Pressure Range, Accuracy & Operating Limits

    • Pressure Range: 0–14.5 PSI
    • Measurement Modes: Gage, Differential, Absolute
    • Accuracy Configuration: ±0.20% FS +1 digit
    • Service Media: Air & compatible gases
    • Operating Temperature: 32–122°F (0–50°C)
    • Storage Temperature: −4 to 140°F (−20 to 60°C)
    • Humidity: 95% RH max, non-condensing

    Construction & Instrument Design

    • Wetted Materials: 18/8 Stainless Steel
    • Display: Graphical back-lit LCD (128 × 64)
    • Enclosure Rating: IP54 / NEMA 3
    • Weight: 10.5 oz (270 g)

    Data Logging & Power

    • Internal Memory: 10,742 readings
    • Logging Intervals: 1 second to 24 hours or manual
    • PC Download: IR serial interface
    • Power: (3) AA batteries or 6–9 VDC external
    • Current Draw: 25 mA (without backlight / IR / buzzer)

    Pressure Connections

    • Hose: 4 / 6 mm
    • Thread: 1/8″ NPT

    Typical Applications

    • Micro-pressure calibration
    • Leak testing
    • Medical gas verification
    • Breathing-air systems
    • HVAC commissioning
    • Industrial hygiene audits
    • Sensor validation

    Why Professionals Choose the HM3531GMH310

    • Ultra-low PSI capability
    • Calibration certificate included
    • Graphical trend display
    • Onboard data logging
    • Portable battery power
    • IP54 field enclosure
    • Multi-mode pressure measurement

    Compliance & Certifications

    • CE Approved
    • IP54 / NEMA 3 enclosure

    Shipping Information

    Lead time subject to factory availability.
