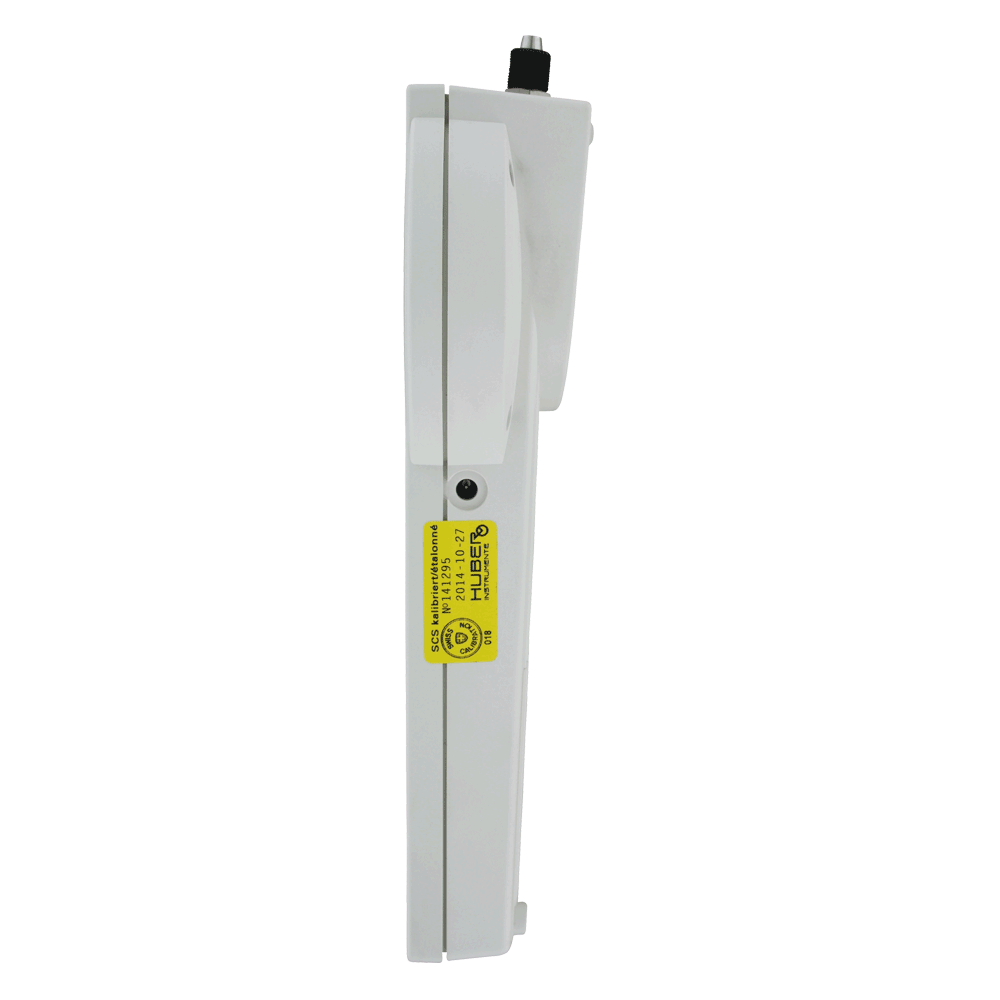

  • Series HM35, right view.
  • Series HM35, model chart.

    • Series HM35 Precision Digital Gage Pressure Manometer – 0–108 PSI, 0.20% Accuracy – Model HM3531GMK310

    Dwyer

    $3,934.80
    (No reviews yet) Write a Review
    SKU:
    HM3531GMK310
    Availability:
    Consult Factory
    Weight:
    10.50 Ounces
    Width:
    6.90 (in)
    Height:
    5.40 (in)
    Depth:
    3.90 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

    Precision Digital Gage Pressure Manometer – HM3531GMK310

    The Series HM35 Precision Digital Gage Pressure Manometer is engineered for ultra-low-pressure calibration tasks requiring traceability, portability, and high-resolution measurement.

    This configuration delivers a 0–108 PSI range with 0.20% full-scale accuracy, onboard data logging, graphical trend visualization, and a factory calibration certificate — making it ideal for laboratory benches, industrial hygiene programs, and gas system validation.

    Designed for air and compatible gases, the HM3531GMK310 supports leak testing, regulator verification, sensor certification, and QA documentation workflows.

    Pressure Range, Accuracy & Operating Limits

    • Pressure Range: 0–108 PSI
    • Measurement Modes: Gage, Differential, Absolute
    • Accuracy Configuration: ±0.20% FS +1 digit
    • Service Media: Air & compatible gases
    • Operating Temperature: 32–122°F (0–50°C)
    • Storage Temperature: −4 to 140°F (−20 to 60°C)
    • Humidity: 95% RH max, non-condensing

    Construction & Instrument Design

    • Wetted Materials: 18/8 Stainless Steel
    • Display: Graphical back-lit LCD (128 × 64)
    • Enclosure Rating: IP54 / NEMA 3
    • Weight: 10.5 oz (270 g)

    Data Logging & Power

    • Internal Memory: 10,742 readings
    • Logging Intervals: 1 second to 24 hours or manual
    • PC Download: IR serial interface
    • Power: (3) AA batteries or 6–9 VDC external
    • Current Draw: 25 mA (without backlight / IR / buzzer)

    Pressure Connections

    • Hose: 4 / 6 mm
    • Thread: 1/8″ NPT

    Typical Applications

    • Ultra-low-pressure calibration
    • Gas regulator testing
    • Industrial hygiene verification
    • Leak diagnostics
    • Laboratory instrumentation
    • Compliance audits
    • QA documentation

    Why Professionals Choose the HM3531GMK310

    • Calibration certificate included
    • Ultra-low PSI optimization
    • Graphical trend display
    • Data logging onboard
    • Portable battery operation
    • IP54 field enclosure
    • Multi-mode pressure capability

    Compliance & Certifications

    • CE Approved
    • IP54 / NEMA 3 enclosure

    Shipping Information

    Lead time subject to factory availability.
