Product Description

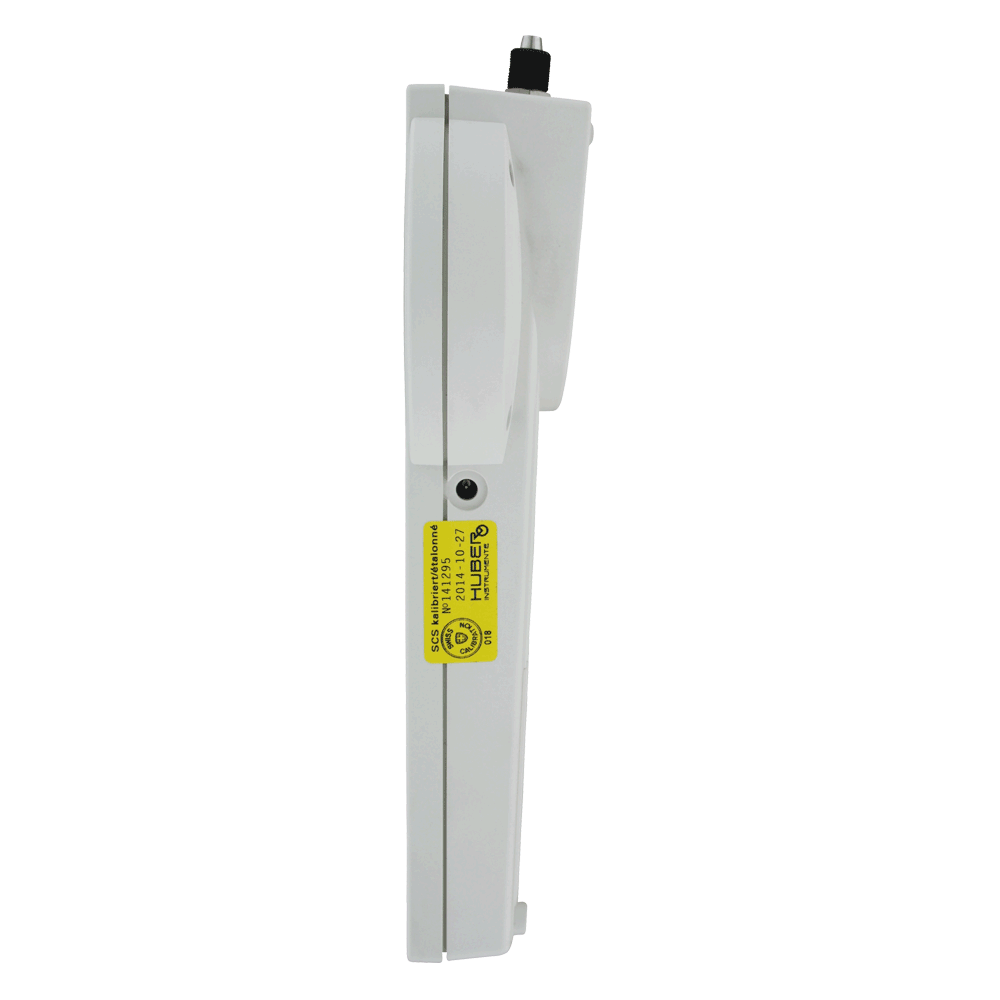

Series HM35 Digital Absolute Pressure Manometer – 0–15.9 psia, Model HM3531ALI300
The Series HM35 digital absolute pressure manometer is designed for calibration laboratories, industrial hygiene programs, and engineering teams that need reliable ultra-low absolute pressure measurement with traceable documentation. With a 0–15.9 psia operating range and a ±0.20% full-scale accuracy tier, this model is ideal for vacuum-adjacent systems, environmental chambers, and process validation where small changes in absolute pressure are critical.
Integrated data logging records system performance over time, while the graphical display highlights pressure stability, peaks, and transient events. Each unit ships with a calibration certificate, supporting its use as a secondary reference standard for verifying transmitters, regulators, and pressure-controlled systems.
Ultra-Low Absolute Pressure Specifications
• Pressure Range: 0–15.9 psia
• Accuracy Tier: ±0.20% FS + 1 digit (per order code)
• Compatible Media: Air and compatible gases
• Wetted Materials: 18/8 stainless steel
• Display: Graphical backlit LCD (128 × 64)
• Memory Capacity: 10,742 readings
• Logging Interval: 1 second to 24 hours or manual
• Power Supply: (3) AA batteries or 6–9 VDC external
• Ingress Rating: IP54 / NEMA 3
• Pressure Ports: 4/6 mm hose or 1/8″ NPT
• Certifications: CE
Data Logging for Vacuum & Calibration Programs
With onboard memory for more than 10,700 stored readings, this HM35 supports vacuum-system verification, chamber validation, and compliance documentation for regulated facilities. PC download capability streamlines reporting for QA teams and commissioning records.
Why Professionals Choose the HM35 Absolute Series
✔ Digital absolute-pressure measurement
✔ ±0.20% FS accuracy tier
✔ Long-term data logging with PC export
✔ Graphical trend visualization
✔ IP54 housing for lab or field use
✔ Portable battery or bench-power operation
