Product Description
DCGII-108 Digital Calibration Pressure Gage for Industrial Testing
The Series DCGII Digital Calibration Pressure Gage – Model DCGII-108 is engineered for high-accuracy field and bench verification where out-of-spec conditions are costly. With 0.05% full-scale accuracy and a high-resolution 5-digit LCD, this rugged instrument supports calibration workflows across industrial plants, laboratories, and commissioning teams.
Manufactured by Dwyer Instruments, the DCGII platform combines stainless steel wetted components with corrosion-resistant housing for dependable performance in harsh environments.
High-Accuracy Pressure Measurement & Display
-

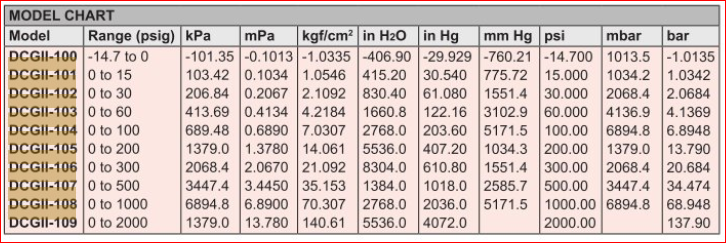

Range: 0–1000 PSIG
-
Accuracy: 0.05% FS ±1 LSD
-
Display: 5-digit LCD with blue backlight
-
Units: Eleven selectable pressure units
-
Functions: % of range, pressure swings, alarm setpoints, min/max peak capture
-
Temperature indication included
316 Stainless Steel Wetted Parts & Durable Construction
-
Wetted Materials: 316 SS
-
Process Connection: 1/2 in male NPT
-
Housing: Aluminum alloy
-
Back Plate: 304 SS
-
Seals: Oil-proof latex
Designed for non-combustible gases and compatible liquids, the DCGII-108 withstands 120% FS overpressure and operates reliably in ambient temperatures from 14 to 122°F.
Portable Power & Extended Runtime
-

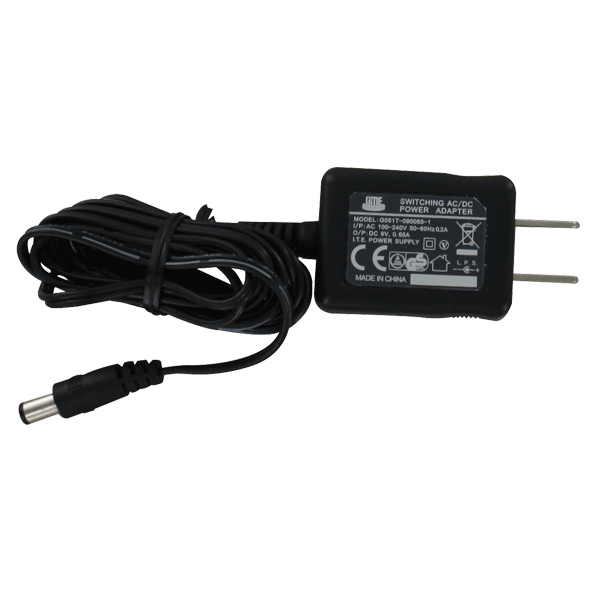

Power: 9V alkaline battery or AC adapter (optional)
-
Battery Life: Up to 10,000 hours
-
Auto shut-off backlight: 10 / 20 / 30 sec
-
Weight: 1.28 lb
The slim, lightweight body makes the DCGII-108 ideal for technicians who need lab-grade results in portable form.
Industrial Calibration Applications
-
Field gage calibration
-
Pressure regulator testing
-
Hydrostatic leak testing
-
Burst disc verification
-
Torque system pressure monitoring
-
Permanent installations
