Product Description
DCGII-104 Digital Calibration Pressure Gage for Low-Range Industrial Testing
The Series DCGII Digital Calibration Pressure Gage – Model DCGII-104 is engineered for technicians who require extreme accuracy in lower-pressure applications. Featuring 0.05% full-scale accuracy and a high-visibility 5-digit LCD, this portable instrument supports demanding calibration, verification, and regulatory compliance workflows across industrial plants and laboratories.
Built by Dwyer Instruments, the DCGII platform pairs stainless-steel wetted components with corrosion-resistant housing for dependable performance in harsh operating environments.
High-Accuracy Pressure Measurement & Display Functions
-
Range: 0–100 PSIG
-
Accuracy: 0.05% FS ±1 LSD
-
Display: 5-digit LCD with blue backlight
-
Units: Eleven selectable pressure units
-
Functions: % of range, pressure swings, alarm setpoints, min/max peak capture
-
Integrated temperature readout
316 Stainless Steel Wetted Parts & Rugged Housing
-
Wetted Materials: 316 SS
-
Process Connection: 1/2 in male NPT
-
Housing: Aluminum alloy
-
Back Plate: 304 SS
-
Seals: Oil-proof latex
Rated for 120% FS overpressure and compatible with non-combustible liquids and gases, the DCGII-104 maintains accuracy in ambient conditions from 14 to 122°F.
Portable Power with Extended Field Runtime
-
Power: 9V alkaline battery or AC adapter (optional)
-
Battery Life: Up to 10,000 hours
-
Backlight timer: 10 / 20 / 30 sec
-
Weight: 1.28 lb
The slim, lightweight design allows technicians to carry lab-grade accuracy directly into the field.

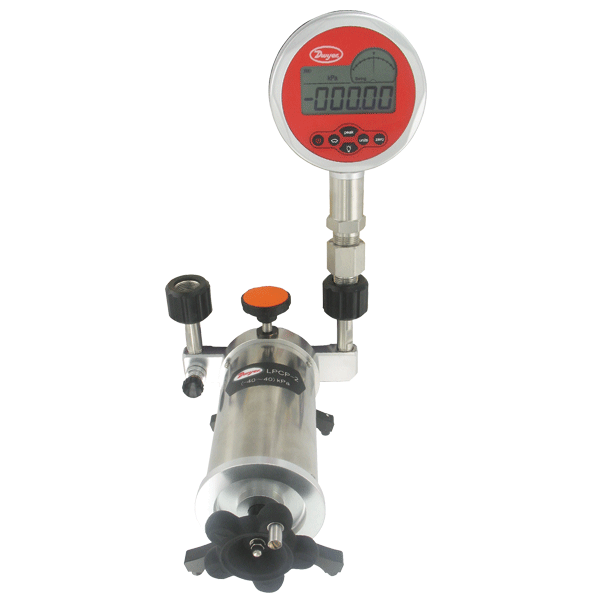

Calibration & Process Control Applications
-
Field gage calibration
-
Pressure regulator testing
-
Hydrostatic leak testing
-
Burst disc verification
-
Torque system monitoring
-
Permanent installation
