Product Description
DCGII-102 Low-Range Digital Calibration Pressure Gage for Precision Work
The Series DCGII Digital Calibration Pressure Gage – Model DCGII-102 is purpose-built for technicians working in ultra-low-pressure environments where small deviations can trigger major compliance issues. Delivering 0.05% full-scale accuracy and a crisp 5-digit LCD, this compact instrument supports calibration, commissioning, and verification tasks in regulated industrial systems.
Produced by Dwyer Instruments, the DCGII platform pairs corrosion-resistant construction with intelligent display functions to keep pressure programs audit-ready and under control.
High-Resolution Pressure Measurement & Display Tools
-

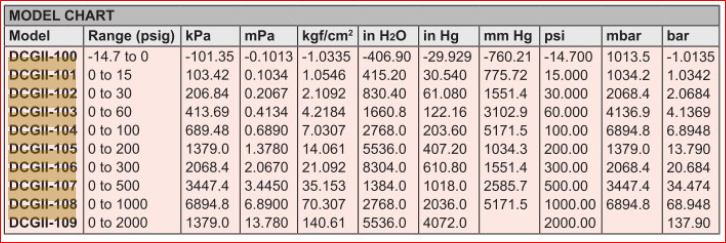

Range: 0–30 PSIG
-
Accuracy: 0.05% FS ±1 LSD
-
Display: 5-digit LCD with blue backlight
-
Units: Eleven selectable pressure units
-
Functions: % of range, pressure swings, alarm setpoints, min/max capture
-
Integrated temperature readout
316 Stainless Steel Wetted Parts & Industrial Housing
-
Wetted Materials: 316 SS
-
Process Connection: 1/2 in male NPT
-
Housing: Aluminum alloy
-
Back Plate: 304 SS
-
Seals: Oil-proof latex
Rated to 120% FS overpressure and compatible with non-combustible liquids and gases, the DCGII-102 holds accuracy in ambient temperatures from 14 to 122°F.
Portable Power for Field Calibration Teams
-

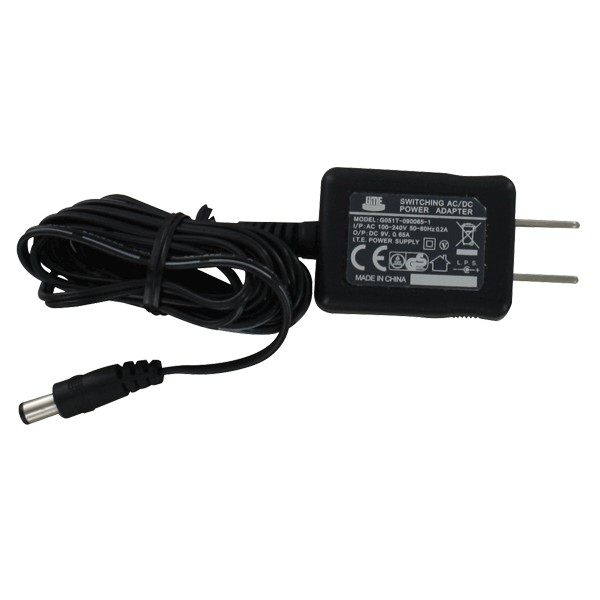

Power: 9V alkaline battery or AC adapter (optional)
-
Battery Life: Up to 10,000 hours
-
Backlight timer: 10 / 20 / 30 sec
-
Weight: 1.28 lb
Slim and lightweight, this gage is ideal for plant maintenance, traveling calibration crews, and long-term installation points.
Low-Pressure Calibration & Verification Applications
-
Field gage calibration
-
Pressure regulator testing
-
Hydrostatic leak testing
-
Burst disc verification
-
Torque system monitoring
-
Permanent installations
