Product Description
DCGII-100 Digital Vacuum Calibration Pressure Gage for Critical Systems
The Series DCGII Digital Calibration Pressure Gage – Model DCGII-100 is engineered for technicians verifying vacuum and negative-pressure systems where precision directly impacts safety, uptime, and regulatory compliance. Delivering 0.05% full-scale accuracy and a crisp 5-digit LCD, this rugged instrument supports calibration, commissioning, and leak-detection workflows across industrial plants and laboratories.
Designed by Dwyer Instruments, the DCGII platform combines corrosion-resistant construction with intelligent display functions that keep pressure programs audit-ready.
High-Resolution Vacuum Measurement & Display Tools
-

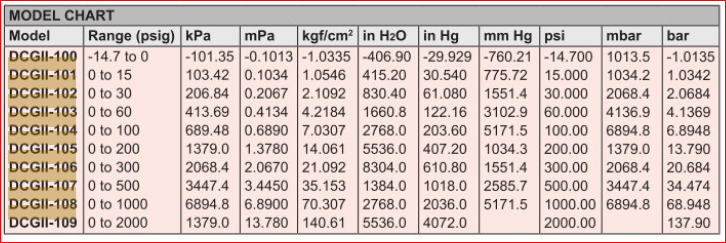

Range: –14.7 to 0 PSIG
-
Accuracy: 0.05% FS ±1 LSD
-
Display: 5-digit LCD with blue backlight
-
Units: Eleven selectable pressure units
-
Functions: % of range, pressure swings, alarm setpoints, min/max capture
-
Integrated temperature readout
316 Stainless Steel Wetted Parts & Industrial Housing
-
Wetted Materials: 316 SS
-
Process Connection: 1/2 in male NPT
-
Housing: Aluminum alloy
-
Back Plate: 304 SS
-
Seals: Oil-proof latex
Rated for 120% FS overpressure and compatible with non-combustible liquids and gases, the DCGII-100 holds accuracy in ambient temperatures from 14 to 122°F.
Portable Power for Field & Plant Calibration
-
Power: 9V alkaline battery or AC adapter (optional)
-
Battery Life: Up to 10,000 hours
-
Backlight timer: 10 / 20 / 30 sec
-
Weight: 1.28 lb
Slim and lightweight, this gage is ideal for plant maintenance crews, traveling calibration teams, and permanent vacuum monitoring points.
Vacuum & Negative-Pressure Applications
-
Field gage calibration
-
Pressure regulator testing
-
Hydrostatic leak testing
-
Burst disc verification
-
Torque system monitoring
-
Permanent installations
