Product Description
Series HM35 Precision Digital 'Differential Pressure' Manometer

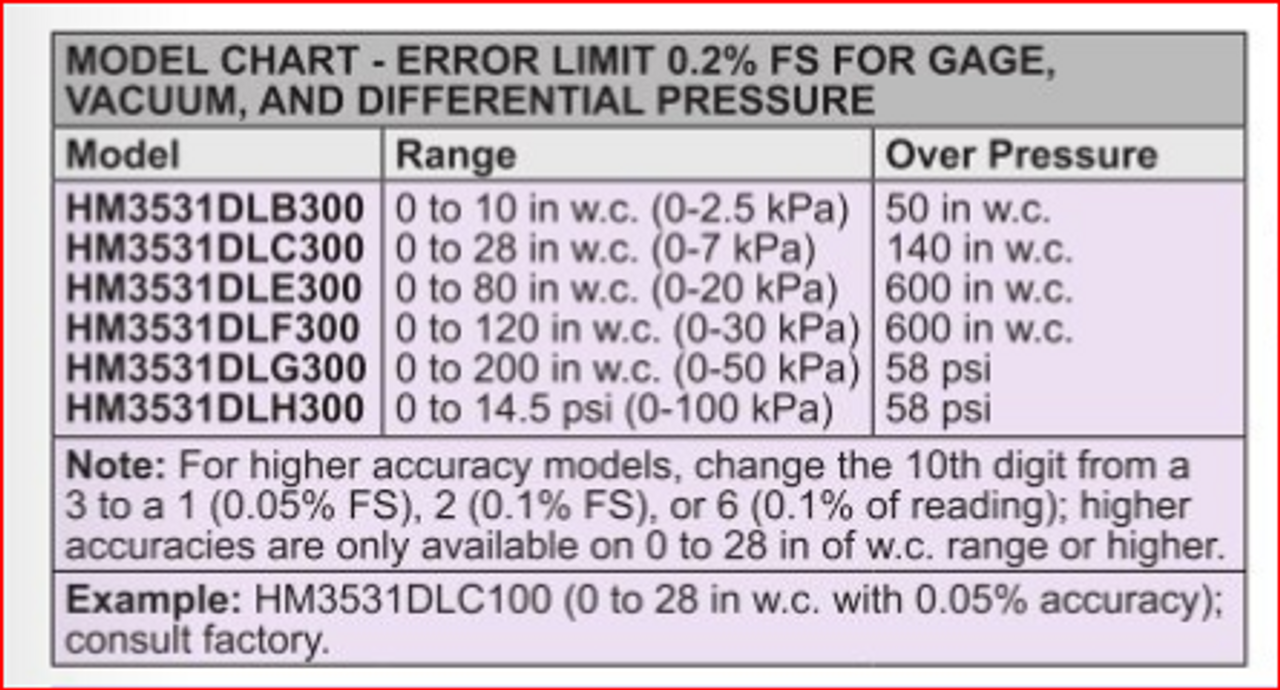

(Model # HM3531DLH100) (Range 0-14.5 psi)
(0.05% accuracy)
Up to 0.05% Accuracy, Graphical Display, Data Logging Capability
THE HIGH PRECISION SERIES HM35 DIGITAL MANOMETER is designed to reliably measure and log pressure measurements for critical applications. This family of manometer can measure absolute pressure, differential pressure or gage pressure with up to 0.05% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. The series HM35 comes standard with a calibration certificate so that the instrument can be used as a secondary calibration standard when testing other pressure instrumentation. This manometer is ideal for laboratories, calibration facilities, and other critical pressure applications.
Product Applications:
- Calibration facilities
- Laboratories
Specifications:
- Service: Air and compatible gases.
- Accuracy: Includes: linearity, hysteresis, and repeatability): per order code. +0.20% scale +1 digit. +0.10% full scale +1 digit. +0.05% full scale +1 digit.
- Wetted Materials: 18/8 stainless steel.
- Temperature Limits: 32 to 122°F (0 to 50° C).
- Storage Temperature: -4 to 140° (-20 to 60° C).
- Humidity: Maximum 95% RH, non-condensing.
- Display: Graphical back lit LCD. 128 x 64 points.
- Power Requirements: (3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power.
- Current Consumption: 25 mA without back lit display, IR, or buzzer.
- Memory: 10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
- Case Protection: IP54 (NEMA 3)
- Weight: 10.5 OZ (270 g).
- Pressure Connection: Hose: 4/6 mm or 1/8 NPT.
- Agency Approvals: CE.
Features:
- Able to record up to 10,742 readings, which can be downloaded to a PC.
- Up to 0.05% accuracy for use in critical applications.
- Measure absolute, differential, or gage pressure.
