Product Description

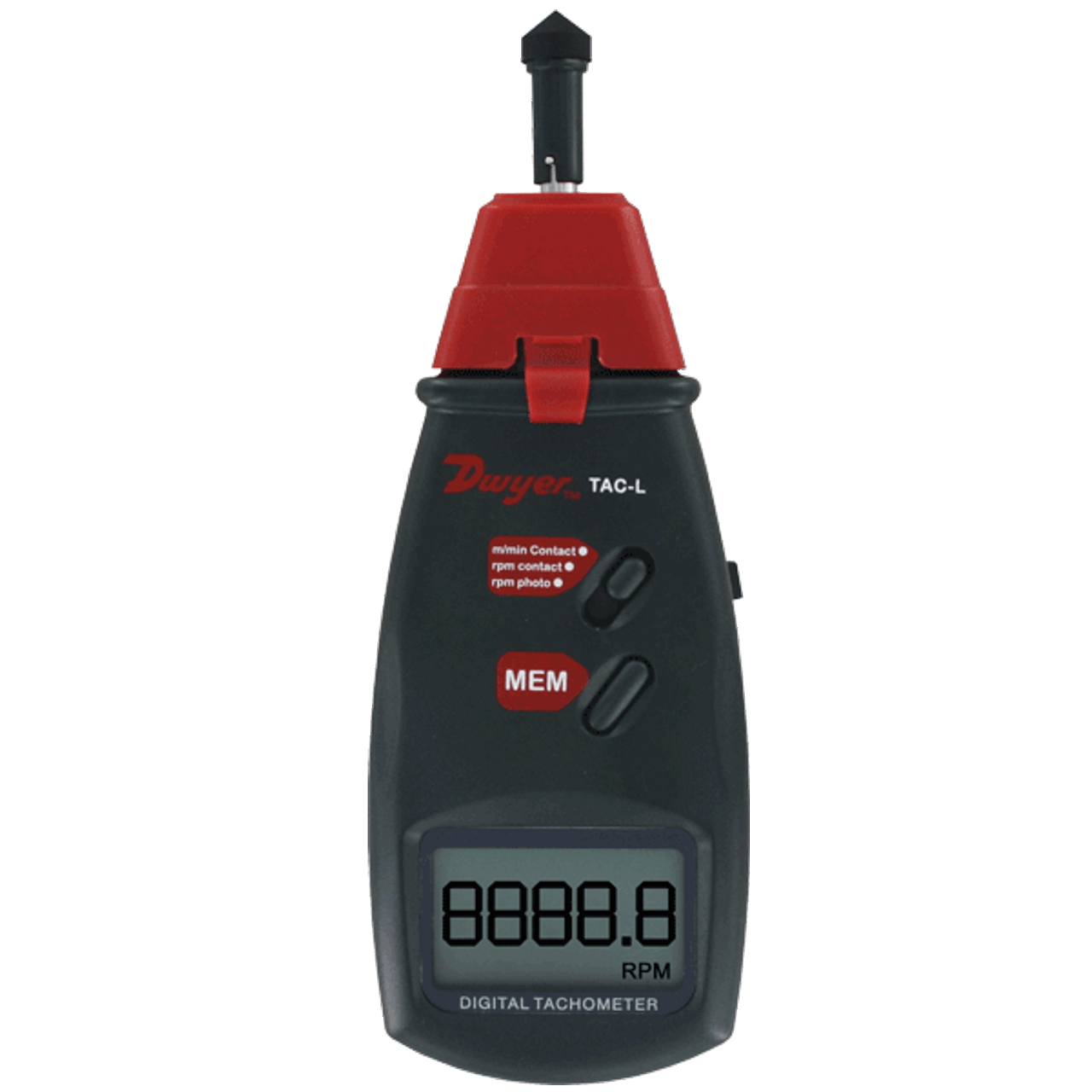

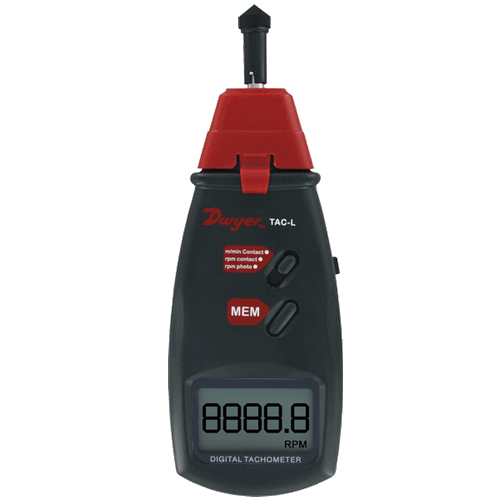

Model TAC-L Portable Contact/Non-Contact Digital Tachometer (Model # TAC-L)
*Contact or Photo Non-Contact Operation, Backlit LCD
Model TAC-L Portable Digital Tachometer measures rotational speed either by contacting a rotatable head to the shaft of the object, or using photo sensor to detect the reflections from the laser. The laser target can record from a distance of up to 20 inches and gives a more accurate measurement than LED targeting. Model TAC-L includes a large LCD with a backlight for use in dark areas. This tachometer is made of a strong, lightweight ABS plastic housing, which is designed to comfortably fit in the hand of the user. Supplied with this model are 3 contact rotational heads, a contact surface wheel, and a protective carrying case.
Product Applications:
- HVAC fan motors
- Powder and bulk conveyor belts
Specifications:
- Accuracy: ±(0.05% + 1 digit).
- Display: Backlit LCD; 5 digits, 7 segments, 0.7" (1.8 cm) H.
- Range: Non-contact (RPM): 2.5 to 99,999 RPM; Contact (RPM_: 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (1000 to 19,999 RPM); Surface Speed (m/min): 0.01 m/min (0.05 to 99.99 m/min), 0.1 m/min (100.0 to 1999.9 m/min).
- Non-Contact Measuring Distance Range:2 to 20" (5 to 50 cm).
- Sampling Time: 0.8 s.
- Temperature Limits: 32 to 122°F (0 to 50° cm).
- Power Requirements: (4) 1.5 V AA alkaline batteries.
- Weight: 1.37 LBS (.620 g).
- Agency Approvals: CE, RoHS.
Features:
- Non-contact operation can record from a distance of up to 20 inches
- Memory function recalls records since last power off
- Large backlit LCD for visibility in dark areas
Shipping Information:
1-2 days.
Please Note: All shipping times are dependent on product availability at time of shipment. Although we make every effort to ensure a continuous supply of our products, occasional circumstances may force us to temporarily run out of a product, or have shipping delays. Should this occur, customers will be notified soon after placement of any orders for such products and, if applicable, items will be put on backorder. For orders requiring expedited shipment, our customer service team can be contacted to confirm product availability.
