Product Description

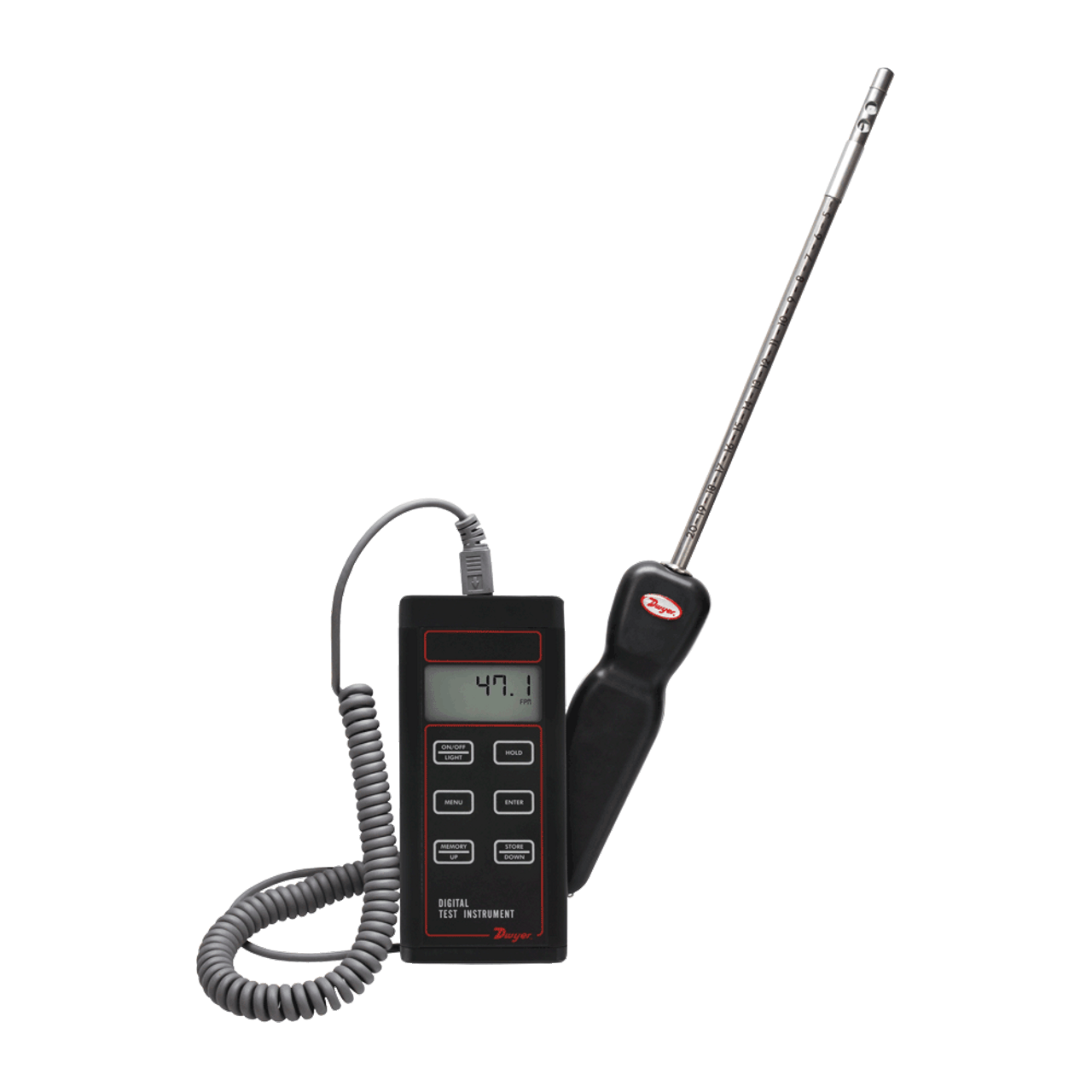

Model 471B Thermo-Anemometer Test Instrument (Model # 471B)
Includes: Digital Thermo-Anemometer, 9V Battery, Sensing Probe, Wrist Strap, Soft Carrying Case & Instructions
*Measures Air Velocity or Air Volume and Temperature Simultaneously

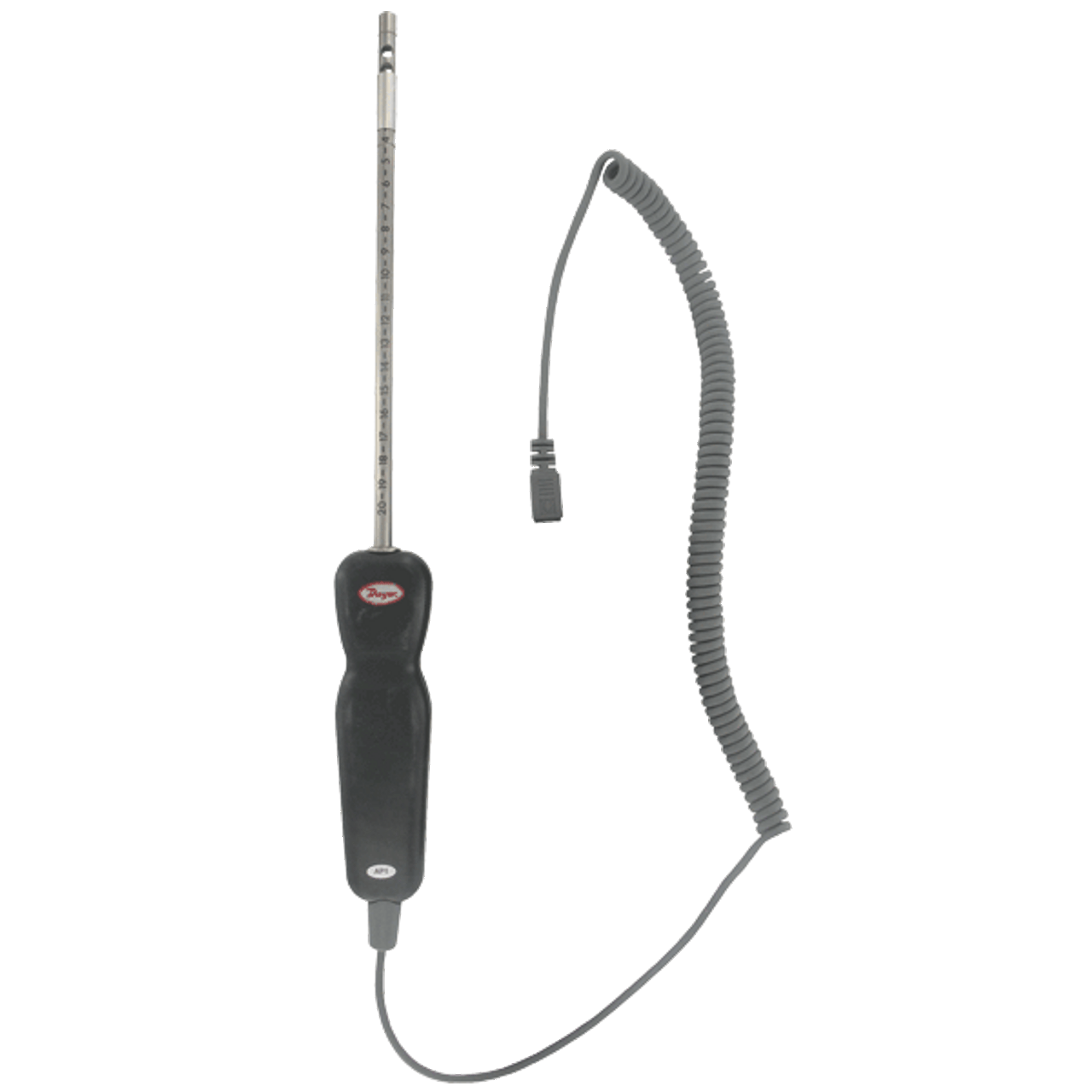

The MODEL 471B Thermo-Anemometer Test Instrument is a versatile dual function unit that quickly and easily measures air velocity or volumetric flow as well as air temperature in imperial or metric units. A stainless steel probe is included, which has a comfortable hand grip and etched insertion depth marks. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.
Product Applications:
- Duct traverses
- HVAC inspections
- Testing and balancing
Specifications:
- Service: Air velocity and temperature of clean, dry air.
- Temperature Limits: Process: -20 to 212° F (-29 to 100° C): Ambient: 5 to 125° F (-15 to 51° C).
- Display:4.5 digit backlit display.
- Resolution: 0.1%, 0.1°F/°C.
- Range Air Velocity: 0 to 6000 FPM (0 to 30 m/s). -TAB option: 50 to 3900 FPM (0.25 to 20m/s).
- Accuracy Air Velocity: ±3% FS within temperature range of 40 to 90°F (4 to 32° C). -TAB option: ±5% of reading, not less than ±1.6 FPM (0.5 m).
- Range Volumetric Air Flow: 19,999 in selected flow units.
- Range Temperature: -40 to 212°F (-40 to 100° C).
- Accuracy Temperature: ±0.5°F (±0.28°C) from 32 to 122° (0 to 50 °C); ±1.5°F (±0.83°C) from -40°F to 32° F (-40 to 0° C) 122 to 212°F (50 to 100°C).
- Probe Length: 8" (203 mm) insertion.
- Cable Length: 28" (71 cm) retracted; 6' (183 cm) extended.
- Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable.
- Weight: 16 oz (454 g).
- Agency Approvals: CE.
Features:
- Compatible with Dwyer RP1 thermo-hygrometer and VP1 100 mm vane thermo-anemometer probes (sold separately)
- High contrast and backlit LCD for visibility in any condition
- Able to store up to 99 readings
- Integral sliding cover protects probe sensors when not in use
- Built-in volumetric air flow calculations
