Product Description

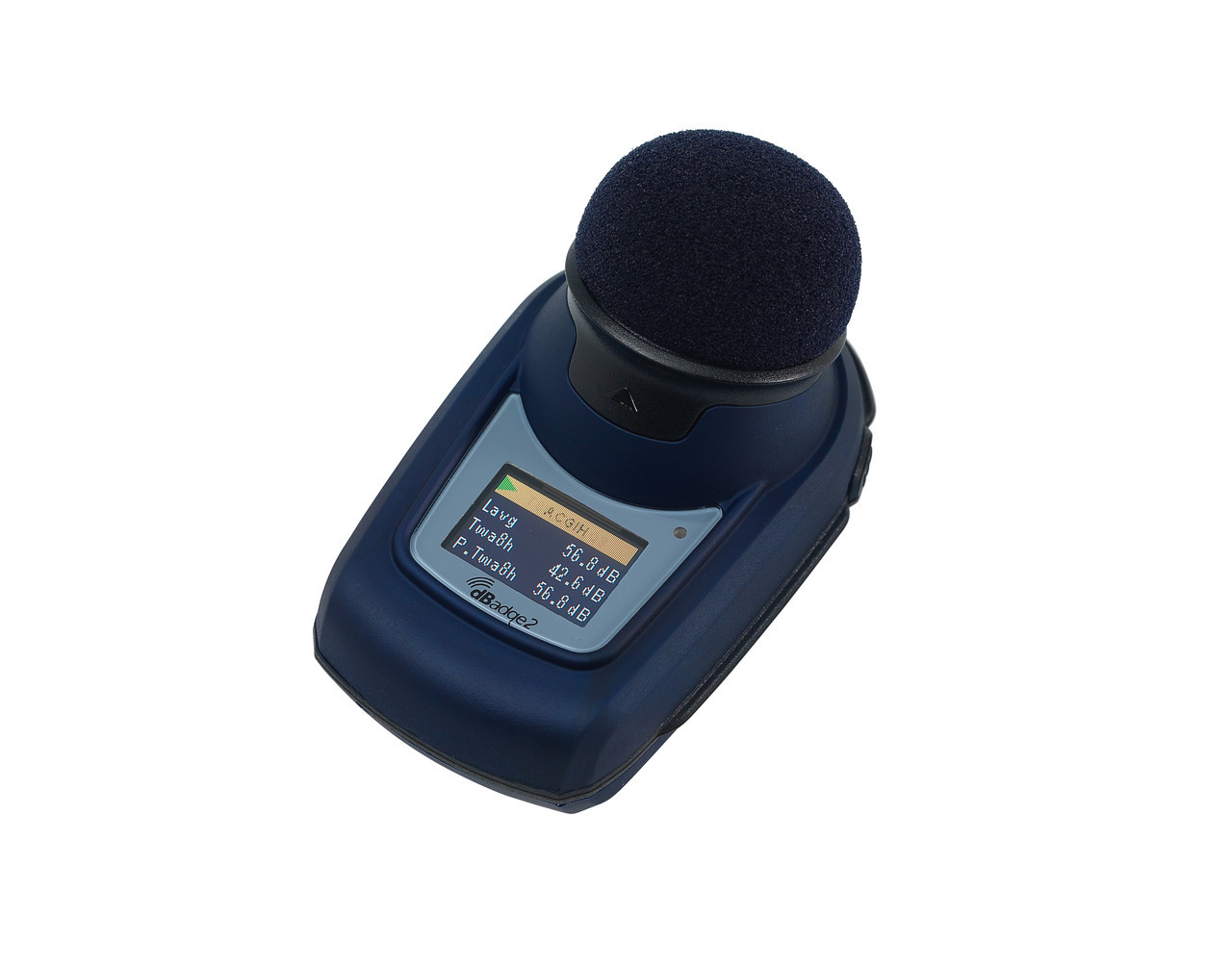

dBadge2 Personal Noise Dosimeter – 9-Unit Enterprise Monitoring System
The dBadge2 Personal Noise Dosimeter (9) Kit is engineered for plant-wide noise-exposure campaigns and large industrial-hygiene teams running simultaneous full-shift and task-based surveys. Designed to support OSHA CFR 1910.95, ISO 9612, and UK L108 noise programs, this scalable platform captures all dose parameters at once, delivers 1-second time-history profiles, and supports PPE-selection decisions through advanced frequency-analysis tools.
This high-capacity bundle includes nine dosimeters plus multiple docking stations to keep crews charging, downloading, and redeploying instruments efficiently during shutdowns, audits, and compliance drives.
⚠️ California Proposition 65 warning applies.
Kit Contents – 9-Unit Configuration
-
(9) dBadge2 Personal Noise Dosimeters
-
(1) CEL-120/2 Acoustic Calibrator
-
(1) 207107B/KIT Charging Base
-
(2) 207107B/EXT Extension Charging Bases
-
(1) dB2Case/10 Protective Carrying Case
Buyer Use Cases & Industrial Applications
Built for enterprise deployments:
-
Full-shift exposure monitoring
-
Task-based noise surveys
-
OSHA CFR 1910.95 programs
-
ISO 9612 compliance studies
-
Hearing-protection selection
-
Oil & gas, petrochemical, mining & pharma sites
-
Plant shutdowns & turnaround audits
Core Noise-Monitoring Capabilities
Each dBadge2 delivers:
-
Simultaneous logging of all dose parameters
-
Multiple simulated dosimeter profiles
-
1-second time-history capture
-
Motion-sensing validation
-
Audio notes & event recording
-
Full-color display
-
Airwave software compatibility
-
Automatic calibrator detection
-
Lockable keypad & screen
Rapid Two-Button Deployment
Optimized for high-volume crews:
-
Power on → apply calibrator → one-button calibration
-
Hold both keys to begin logging
-
Shoulder-mounted for all-shift comfort
-
Color-coded screen confirms run status
Intrinsically Safe Certification for Hazardous Locations
Approved for explosive atmospheres:
-
Ex ia IIC T4 Ga
-
Ex ia IIIC T135 °C Da
-
EX ia I Ma
-
Ambient range: -20 °C to +45 °C
Technical Specifications
-
Standards: ANSI S1.25; IEC 61252
-
Linear Range: 55–140.3 dB(A)
-
Peak Range: 90–143.3 dB(C/Z)
-
Exposure: 0–6,100 Pa²-hrs
-
Battery: Internal NiMH 800 mAh
-
Runtime: 35 hrs broadband / 15 hrs octave
-
Charge Time: < 6 hrs
-
Storage: 300 hrs data + 90 min audio
-
USB Interface: Docking station
-
Ingress Rating: IP65
-
Weight: 117 g
-
Dimensions: 85 × 54 × 55 mm
