Series VF Visi-Float® Acrylic Flowmeter (Model #VFA-32)
Model Specifics: (Range 6-50 cc/min water) (2" Scale) (W/t No Valve)
The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves.
- Used to indicate or manually control air or water flow.
- Medical equipment
- Laboratory equipment
- Air samplers
- Gas analyzers
- Pollution monitors
- Chemical injectors
- Cabinet purging
- Service: Compatible gases and liquids.
- Accuracy: VFA + 5%of FS; VFB+ 3% of FS
- Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard, SS optional; Float: SS, black glass, aluminum, K model depending on range.
- Temperature & Pressure Limits: Without valve: 100 PSIG (6.9 BAR) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48° C).
- Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
- Scale Length: VFA 2" typical length; VFB 4" typical length.
- Mounting Orientation: Mount in vertical position.

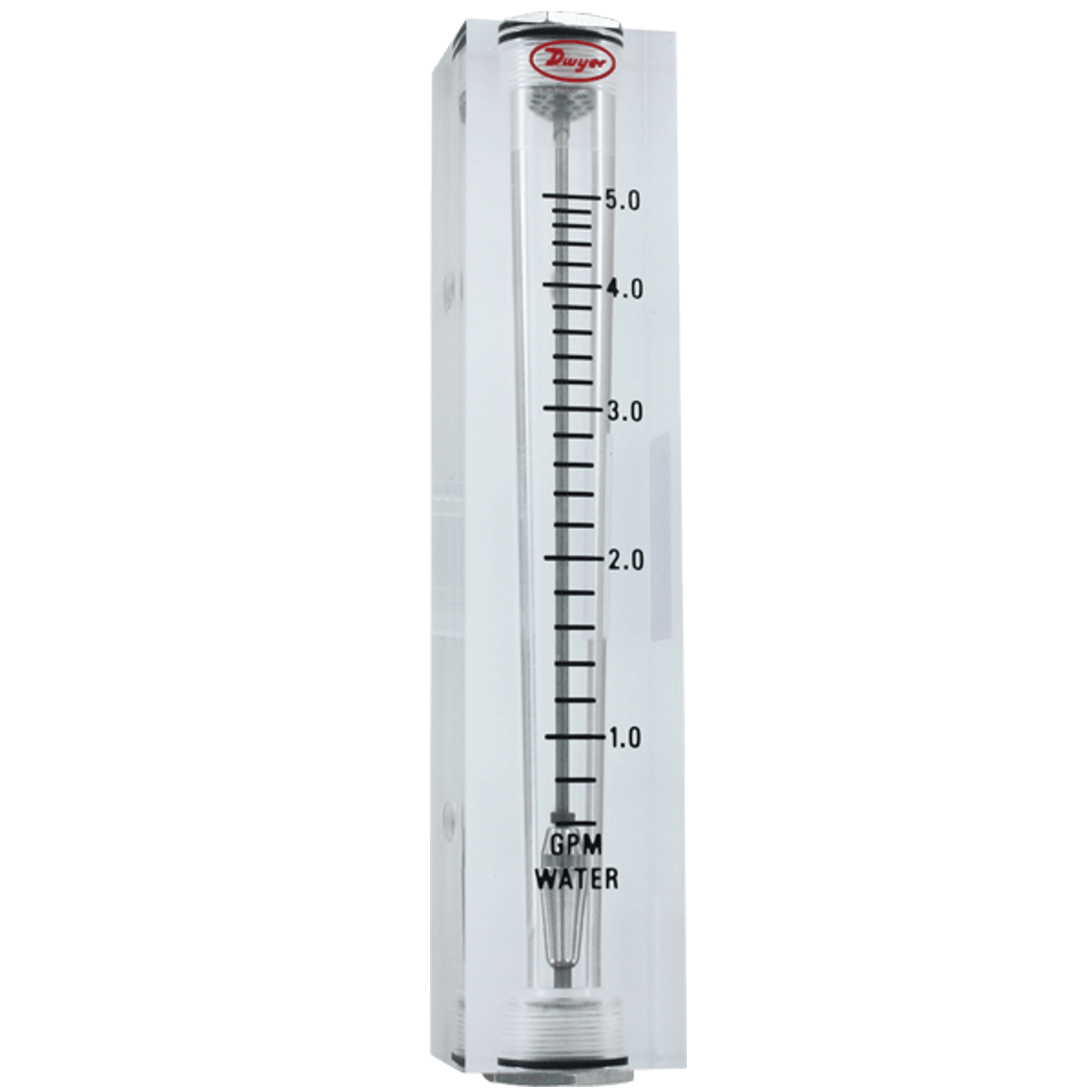

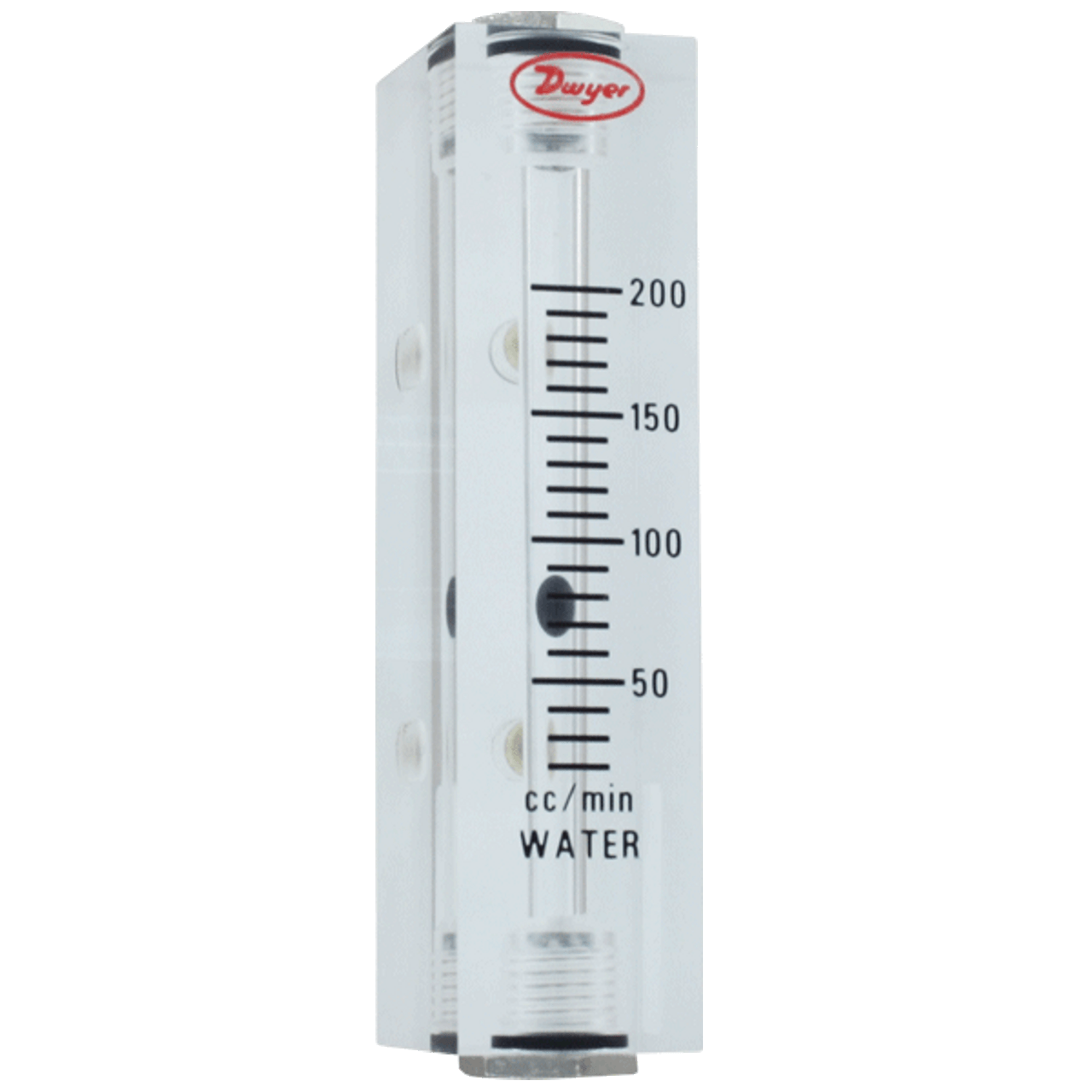

- Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
- Agency Approvals:Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
- Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection.
- White background allows for better visibility of the float increasing reading accuracy.
- Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life.
- Precision machined tapered bore enables high repeatability.
- Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping.
